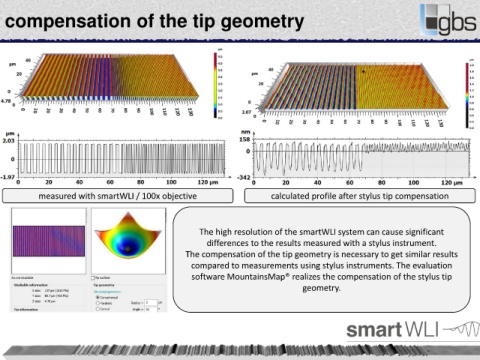

compensation of the tip geometry
measured with smartWLI / 100x objective calculated profile after stylus tip compensation
The high resolution of the smartWLI system can cause significant
differences to the results measured with a stylus instrument.
The compensation of the tip geometry is necessary to get similar results
compared to measurements using stylus instruments. The evaluation
software MountainsMap® realizes the compensation of the stylus tip
geometry.
